Front Arm Reach Range:
22.13" - 47.38"
Height Range:
145"
Drive Thru Under Clearance on Top Lock Comb Units:
68.5" / 1741 mm
Drive Thru Width Range Comb Units:
92" - 102"
Drive Thru Width Standard Configuration Comb Units:
92" / 2338 mm
Floor To Top Switch Height Comb Units:
139.25" / 3537 mm
Fully Lowered Comb Units:
4.38" / 110 mm
Height Overall Comb Units:
145" / 3683 mm
Max Lifting Height plus Pads and Extensions Top Lock Comb Units:
82" / 2083 mm
Max Lifting Height with Low Adapter Top Lock Comb Units:
74.5" / 1892 mm

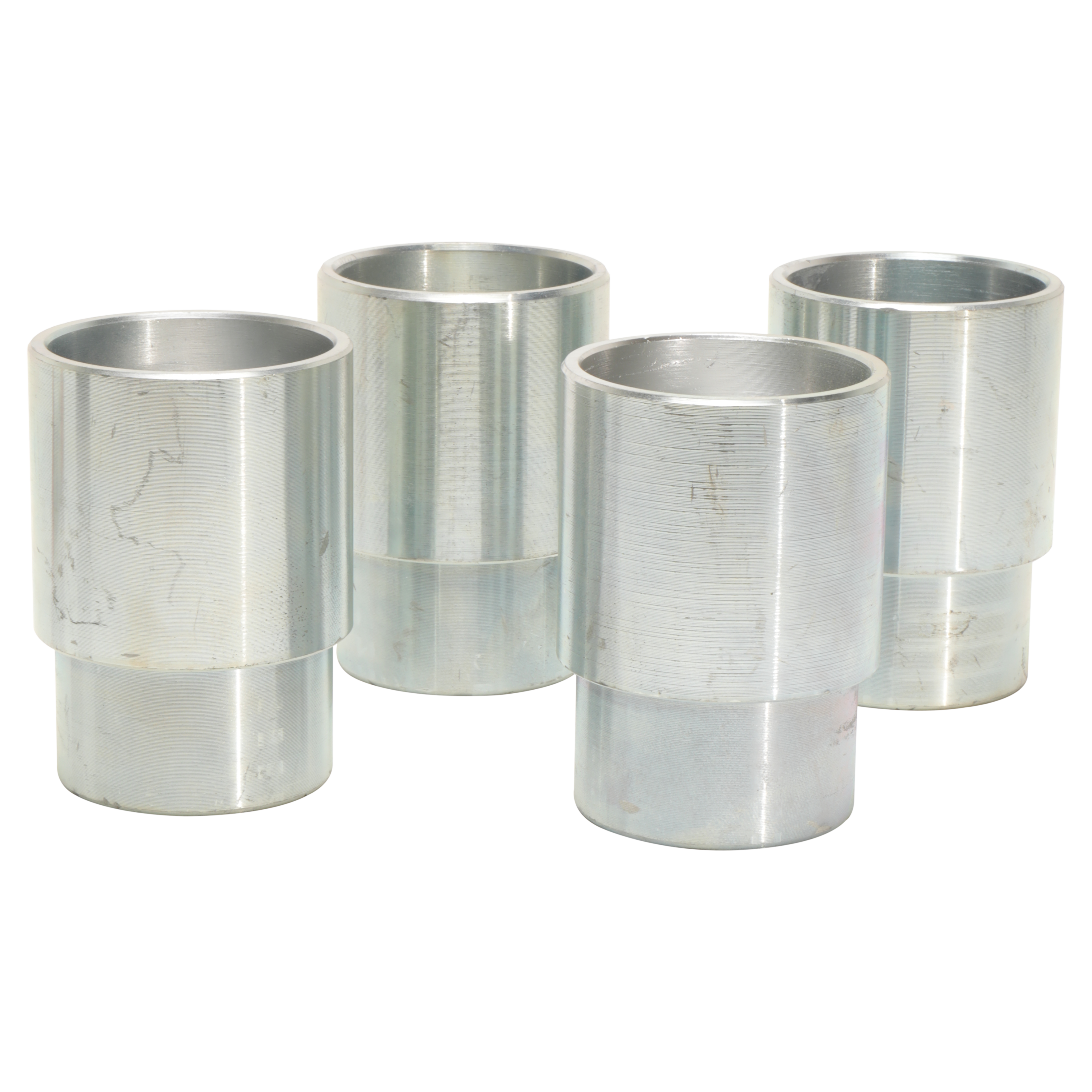

Max Lifting Height with Med Adapter Top Lock Comb Units:
74.75" / 1899 mm

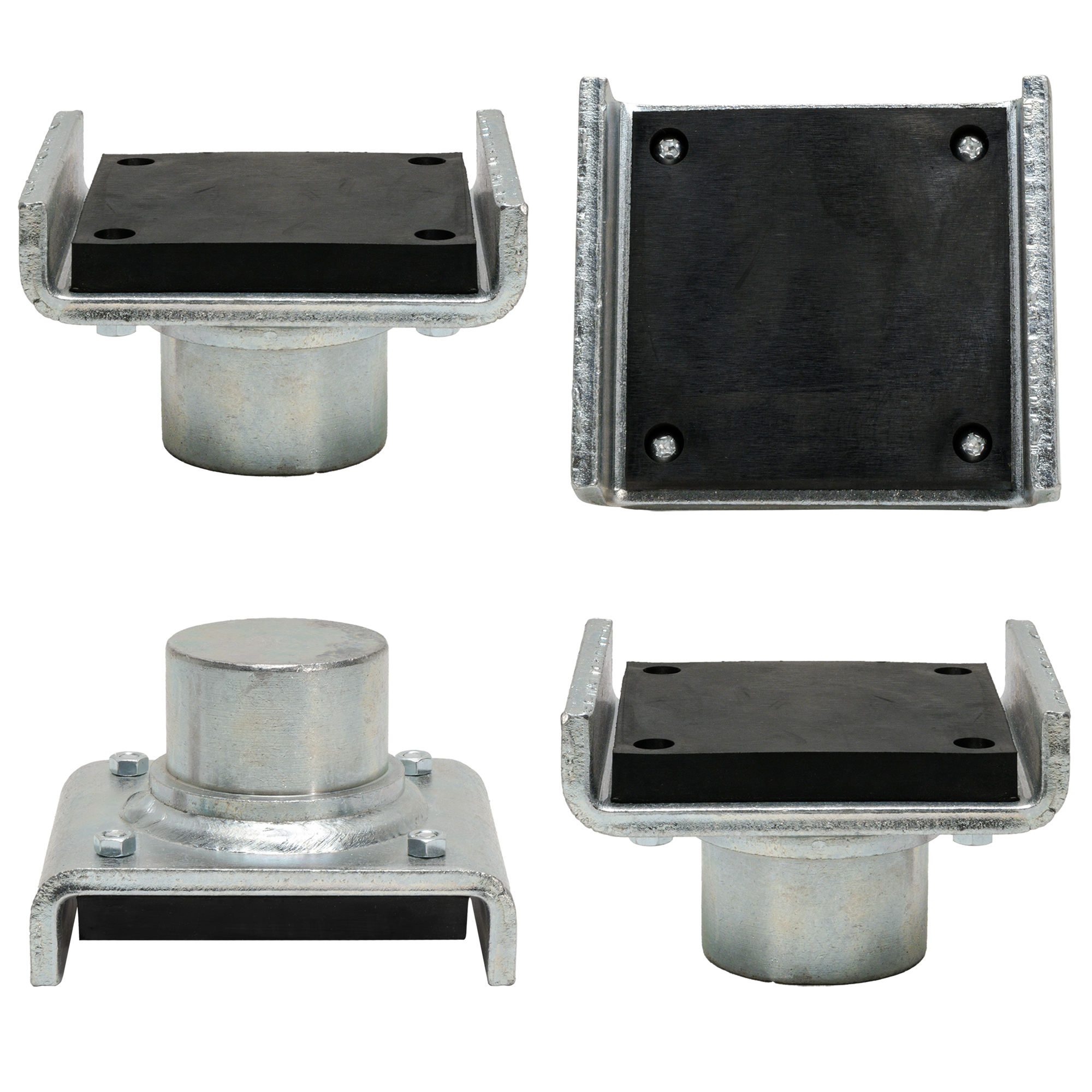

Max Lifting Height with Pad Top Lock Comb Units:
72.25" / 1835 mm
Overall Length Comb Units:
19.5" / 495 mm
Overall Width Max Comb Units:
145" / 3683 mm
