Front Arm Reach Range:
22.75" - 48"
Height Range:
181"
Drive Thru Under Clearance on Top Lock Comb Units:
74.5" / 1893 mm
Drive Thru Width Range Comb Units:
92" - 102"
Drive Thru Width Standard Configuration Comb Units:
92" / 2338 mm
Floor To Top Switch Height Comb Units:
175" / 4447 mm
Fully Lowered Comb Units:
4.38" / 110 mm
Height Overall Comb Units:
181" / 4597 mm
Max Lifting Height plus Pads and Extensions Top Lock Comb Units:
88.75" / 2254 mm
Max Lifting Height with Low Adapter Top Lock Comb Units:
81.25" / 2064 mm

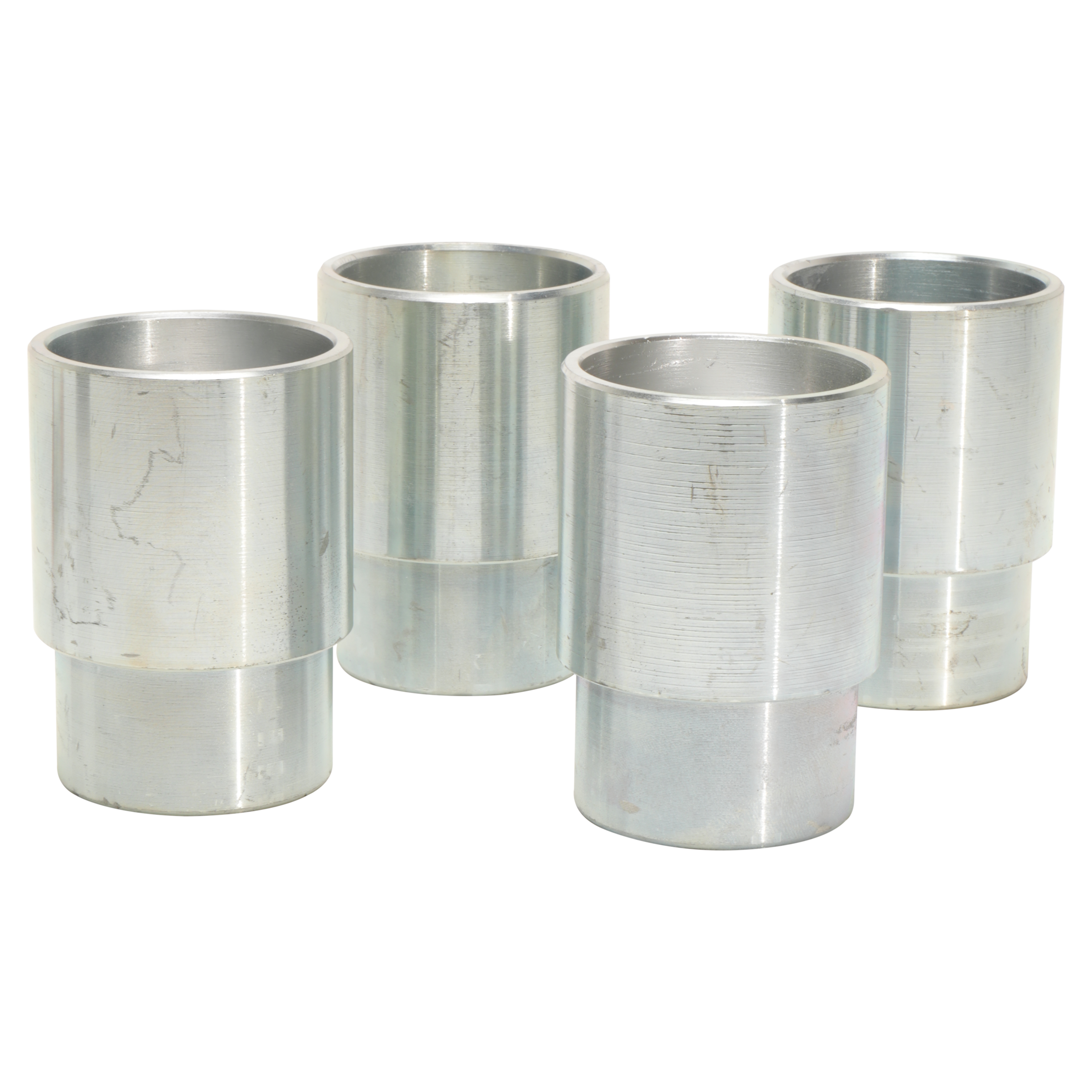

Max Lifting Height with Med Adapter Top Lock Comb Units:
81.5" / 2070 mm

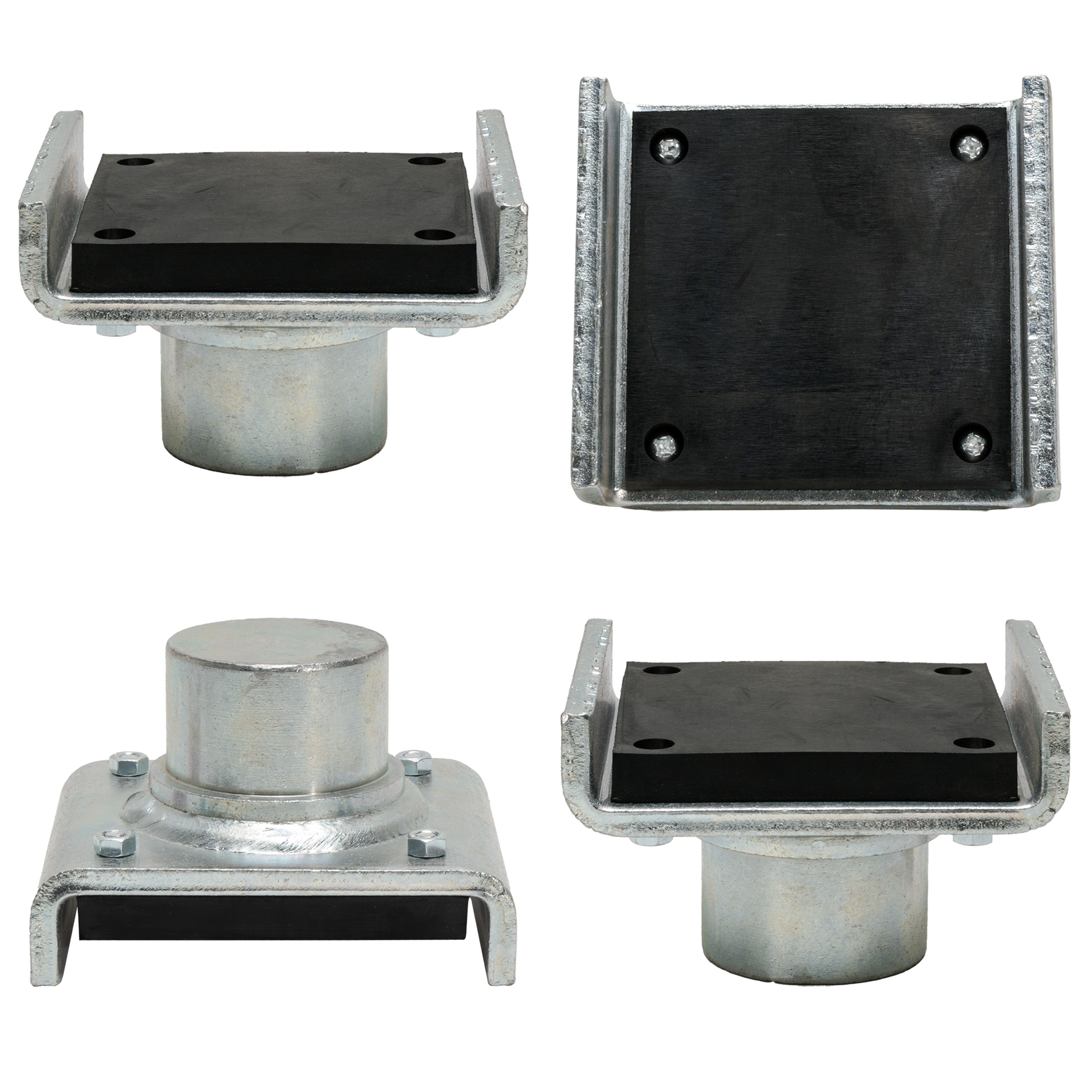

Max Lifting Height with Pad Top Lock Comb Units:
79" / 2007 mm
Overall Length Comb Units:
19.5" / 495 mm
Overall Width Max Comb Units:
145" / 3683 mm
