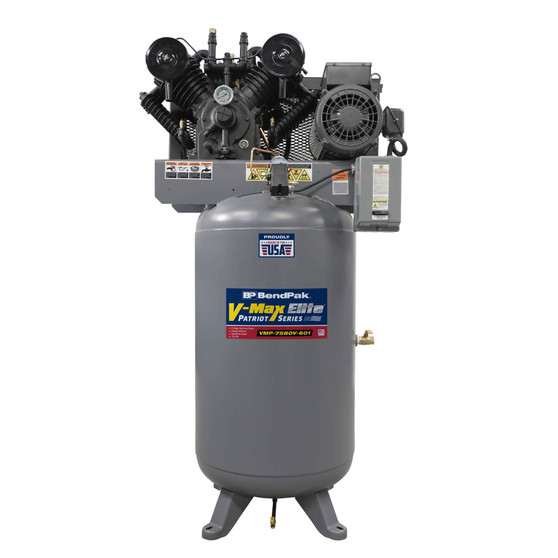

BendPak VMP-7580V-601 80-Gallon V-Max Elite Vertical Air Compressor - v-max_elite_vmp-7580v-601_air_compressors_5179112.jpg

BendPak VMP-7580V-601 80-Gallon V-Max Elite Vertical Air Compressor

$4,695.00
SKU:
5179112
Status: Active

Product Description

Up your air game with the powerful, 1-phase or 3-phase V-Max Patriot 7580V air compressor from BendPak. V-Max Patriot air compressors meet and exceed your air system needs with high-efficiency technology and unrivaled quality

Product Info

After Cooler Included:
true
Air Compressor Type:
Stationary Electric
Air Dryer:
0
Air Outlet Size:
0.75
Assembly Required:
true
Brand:
BendPak
Category:
/Shop Equipment/Air Compressors/
Color:
Grey
Duty Cycle:
Continuous
Engine Start Type:
Electric
Item Status:
Active
Lubrication System:
true
Material:
Cast Iron
Product Type:
Air Compressor
Pump Drive:
Belt
Pump Material:
Solid Cast Iron
Rated For Outdoor Use:
false
SKU:
5179112
Tank Orientation:
Vertical
Type of Pump:
Two Stage
Whats Included Description:
  • 1 VMP-7580V-601 Air Compressor

Technical Specifications

Amps:
32
Motor:
7.5 HP 208-230V, 50-60Hz, 1-Ph.
Voltage:
208-230V
Watts:
7040

Shipping Info

Business Days To Drop Ship:
5
Free Shipping To Customer:
true
Freight Class:
100
How Many Packages Does This Product Ship In:
1
How This Item Normally Ship:
LTL
Offload Requirement:
Forklift or Liftgate
Package 1 Shipping Dimensions Comb Units:
48 X 85 X 48 / 936 lbs.

Product Dimensions

Height Range:
72"
Length Range:
34
Width Range:
24
Height Overall Comb Units:
72" / 1829 mm
Overall Length Comb Units:
34" / 864 mm
Overall Width Max Comb Units:
24" / 610 mm

Marketing Info

General Description 50:
VMax Air Compressor/7.5 HP/80-Gallon Vertical Tank

Features

Compatibility Feature Benefit:
Assembled in USA
Feature Benefit 1:
ASME, UL, CSA certified
Feature Benefit 2:
7.5 HP energy-efficient motor
Feature Benefit 3:
Extra-quiet, low-RPM pump
Feature Benefit 4:
Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
Feature Benefit 5:
Proven air-cooled design is economical, reliable and environmentally friendly
Feature Benefit 6:
Two compression rings and one oil control ring provide excellent oil control and high-efficiency air delivery
Feature Benefit 7:
Dual drive belts require less belt tension, resulting in less load on pump bearings, longer belt life and low vibration
Feature Benefit 8:
Fully-enclosed belt guard
Feature Benefit 9:
Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves

Regulatory Compliance

Nmfc No Spaces No Preceding Zeros No Dashes:
118100
Return Disposition:
Return to Vendor

Parts

Serviceable Parts 1:
Oil Pressure Gauge
Serviceable Parts 2:
Air Pressure Gauge

Warranty

Warranty Period In Months:
60
Warranty Period In Months Required Unless Lifetime Warranty Hydraulic Cylinder And Power Unit:
24
Warranty Period In Months Required Unless Lifetime Warranty Lift Structure:
60
Warranty URL:
/support/warranty/

Certifications
